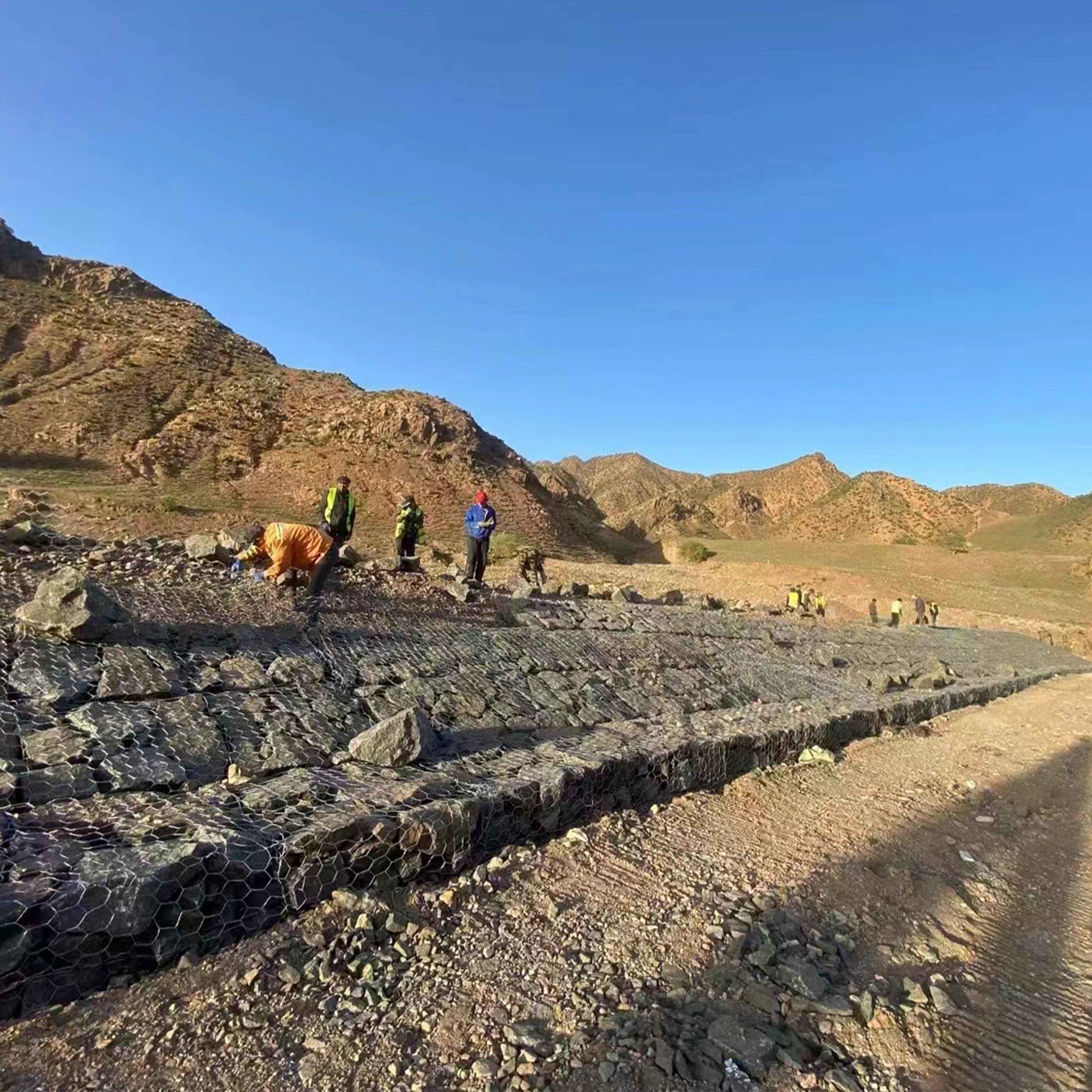

Woven Gabion HDG Mesh for Hydraulic Riverbank Retaining Wall Construction

Woven Gabion Wall, formed with double-twisted hexagonal steel wire (Hot-Dip Galvanized/Galfan-coated), is utilized in hydraulic engineering for constructing weir foundations, harbor breakwaters, and drainage channel reinforcement. Its flexible mesh structure supports rock or concrete fill to dissipate hydraulic energy in tidal barrier systems, storm surge protection, and irrigation canal embankments. Compliant with EN 10223-3 specifications, modular units (1.5x1x0.5m to 3x2x1m) enable rapid deployment in sediment control basins, culvert headwalls, and river delta stabilization projects under dynamic aquatic conditions.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Hebei KN Wire Mesh Co., Ltd, was established in 2013, is a professional manufacturer engaged in the research, development, production, sale and service of Defensive barrier, Welded Gabion Box, Wave Gabion Basket , Gabion Mattress. We are located in Anping county hengshui city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including welded wire mesh machine,Cutting Machine,Bending machine,air pump,Punching machine. We have strong technical strength,scientific management and complete inspection means to guarantee iron wire products of high grade .We will with the most preferential price,best quality in the face of the customer. In addition, we have obtained ISO EU CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Britain, France, Germany, USA,UK Kenya, Zambia, Philippines,Thailand,Korea,New Guinea,Greece, Mexico. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Our company always insist on the quality strives for the survival, to the credibility of development the objective, wholeheartedly for the domestic and foreign customers, with quality products and first-class service. and foreign customers, with quality products and first-class service.
