Reinforced Gabion Wall Flood Defense Hydraulic Project Zinc Coated Mesh CE Certified

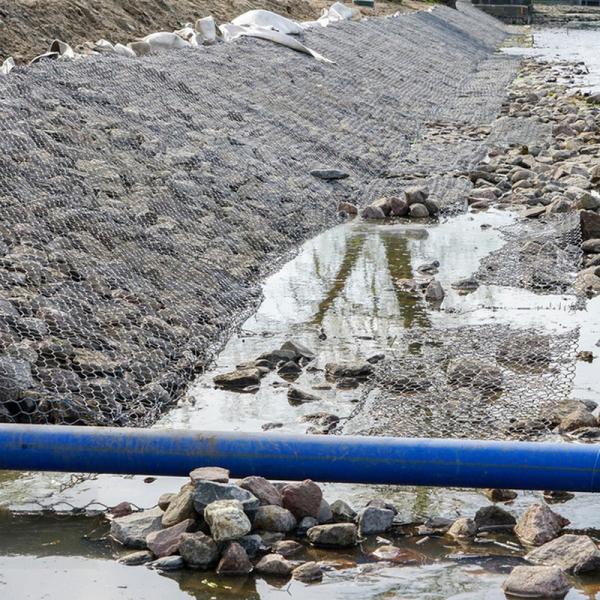

Woven Gabion Wall for Hydraulic Protection

Engineered for critical water management projects, our woven gabion walls combine durability with environmental compatibility. The double-twisted hexagonal mesh structure, fabricated from heavy gauge (2.7-4.0mm) galvanized or PVC-coated steel wire, provides exceptional resistance to hydraulic forces while maintaining permeability.

Key hydraulic applications:

• Riverbank stabilization

• Flood control barriers

• Coastal erosion defense

• Spillway protection

Technical specifications:
• Mesh openings: 80×100mm (standard)
• Tensile strength: ≥50kN/m
• Design life: 25+ years
• Water flow capacity: >90%

The flexible design accommodates ground settlement while stone fill creates energy-dissipating surfaces that reduce flow velocity by 30-50%. Eco-friendly solution that blends with natural environments and promotes vegetation growth.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
